iOS项目实战之自定义相机

Sian · 发表于 2015-4-21 13:09:20

一、基本思路
1、创建一个导航控制器，承载两个控制器：拍照、照片预览；
2、分别创建这两个控制器，由于视图均为静态视图，所以直接用xib创建即可；
3、引用AVFoundation框架，通过媒体与数据流的交互来获取图片；
4、各种封装

二、使用到的几个类及相关说明：

SAImagePickerController：继承导航控制器类，用他来创建一个自定义相机

SACameraCtrl：拍照控制器，即拍照主界面，取景，摄像头切换、闪光灯开关、拍照按钮都在这个界面上展示；

SAPhotoViewCtrl：照片预览控制器，即拍照后的预览界面，查看照片效果、确定使用照片或重拍；

SAPreview：自定义View，拍照取景的那个视图，自定义是为了能够监听处理该视图上的事件，如对焦等。

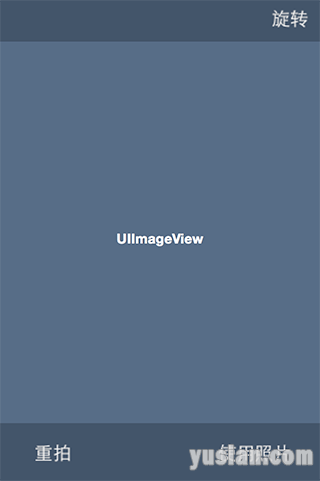

三、基本界面预览：

四、关键代码：

1、SACameraCtrl.h

[Objective-C] 纯文本查看 复制代码

//
//  SACameraCtrl.h
//  Test
//
//  Created by 余西安 on 15/4/13.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface SACameraCtrl : UIViewController

@end

2、SACameraCtrl.m

[Objective-C] 纯文本查看 复制代码

//
//  SACameraCtrl.m
//  Test
//
//  Created by 余西安 on 15/4/13.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import "SACameraCtrl.h"
#import "SAPreview.h"
#import "SAPhotoViewCtrl.h"
#import <AVFoundation/AVFoundation.h>
#import <CoreMotion/CoreMotion.h>
#define SourcePath [[NSBundle mainBundle] pathForResource:@"SAImagePickerController.bundle" ofType:nil]

@interface SACameraCtrl () <UIAccelerometerDelegate>

// 输入流预览图层
@property (nonatomic, strong)   AVCaptureVideoPreviewLayer  *previewLayer;

@property (weak, nonatomic) IBOutlet SAPreview *preview;

// AVCaptureSession对象来执行输入设备和输出设备之间的数据传递
@property (nonatomic, strong)   AVCaptureSession            *session;

// 设备输入流
@property (nonatomic, strong)   AVCaptureDeviceInput        *deviceInput;

// 照片输出流
@property (nonatomic, strong)   AVCaptureStillImageOutput   *imageOutput;

// 图片输出视图
@property (nonatomic, strong)   UIImageView     *cameraShowView;

// 摄像头数组
@property (nonatomic, strong, readonly) NSArray *devices;       // AVCaptureDevices

// 闪光灯切换按钮
@property (weak, nonatomic) IBOutlet UIButton *flashButton;


@end

@implementation SACameraCtrl

- (void)viewDidLoad
{
    [super viewDidLoad];
    // 创建交互流
    self.session = [[AVCaptureSession alloc] init];
    self.session.sessionPreset = AVCaptureSessionPresetPhoto;

    // 媒体输入
    AVCaptureDevice *device = [self.devices firstObject];
    [self setDevice:device FlashMode:AVCaptureFlashModeAuto];
    self.deviceInput = [AVCaptureDeviceInput deviceInputWithDevice:device error:NULL];
    if([self.session canAddInput:self.deviceInput])[self.session addInput:self.deviceInput];

    // 媒体输出
    self.imageOutput = [[AVCaptureStillImageOutput alloc] init];
    self.imageOutput.outputSettings = @{AVVideoCodecKey : AVVideoCodecJPEG};
    AVCaptureConnection * connection = [self.imageOutput connectionWithMediaType:AVMediaTypeVideo];
    connection.videoOrientation = AVCaptureVideoOrientationLandscapeRight;
    if([self.session canAddOutput:self.imageOutput])[self.session addOutput:self.imageOutput];

    // 媒体预览
    self.previewLayer = [AVCaptureVideoPreviewLayer layerWithSession:self.session];
    self.previewLayer.videoGravity = AVLayerVideoGravityResizeAspectFill;
    self.previewLayer.position = self.preview.center;
    [self.preview.layer addSublayer:self.previewLayer];
    [[UIDevice currentDevice] beginGeneratingDeviceOrientationNotifications];
    [self setPreviewGesture];
}


#pragma mark - 前后摄像头
- (NSArray *)devices
{
    return [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];
}

- (void)viewWillAppear:(BOOL)animated
{
    [super viewWillAppear:animated];
    self.previewLayer.frame = self.preview.layer.bounds;
    self.navigationController.navigationBar.hidden = YES;
    [self.session startRunning];
}

- (void)viewDidAppear:(BOOL)animated
{
    [super viewDidAppear:animated];
    [[UIApplication sharedApplication] setStatusBarHidden:YES];
}

- (void)viewWillDisappear:(BOOL)animated
{
    [super viewWillDisappear:animated];
    [[UIApplication sharedApplication] setStatusBarHidden:NO];
}

- (void)viewDidDisappear:(BOOL)animated
{
    [super viewDidDisappear:animated];
    [self.session stopRunning];
}

/// 媒体预览图层手势事件
- (void)setPreviewGesture
{
    // 注册一个手势事件来实现对焦功能
    UITapGestureRecognizer *tap = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(tapPreview:)];
    [self.preview addGestureRecognizer:tap];
}

/// 预览图层点击事件
- (void)tapPreview:(UITapGestureRecognizer *)gesture
{
    CGPoint point = [gesture locationInView:gesture.view];
    CGPoint p = [self.previewLayer captureDevicePointOfInterestForPoint:point];
    [self focusAtPoint:p];
    self.preview.aperture.center = point;
    [self.preview showAperture];
}

/// 对焦事件
- (void)focusAtPoint:(CGPoint)point
{
    AVCaptureDevice *device = self.deviceInput.device;
    NSError *error;
    if ([device isFocusModeSupported:AVCaptureFocusModeAutoFocus] && [device isFocusPointOfInterestSupported])
    {
        if ([device lockForConfiguration:&error]) {
            [device setFocusPointOfInterest:point];
            [device setFocusMode:AVCaptureFocusModeAutoFocus];
            [device unlockForConfiguration];
        } else {
            SALog(@"Error: %@", error);
        }
    }
}

/// 摄像头切换事件
- (IBAction)switchCamera:(UIButton *)sender
{
    if (self.devices.count < 2) return;

    NSInteger oldIndex = [self.devices indexOfObject:self.deviceInput.device];
    NSInteger newIndex = (oldIndex + 1) % self.devices.count;
    AVCaptureDevice *newDevice = [self.devices objectAtIndex:newIndex];
    AVCaptureDeviceInput *newInput = [AVCaptureDeviceInput deviceInputWithDevice:newDevice error:NULL];
    if (newInput) {
        [self.session beginConfiguration];
        [self.session removeInput:self.deviceInput];
        [self.session addInput:newInput];
        [self.session commitConfiguration];
        self.deviceInput = newInput;
        self.flashButton.hidden = !newDevice.isFlashAvailable;
    }
}

/// 取消事件
- (IBAction)cancel:(UIButton *)sender
{
    [self dismissViewControllerAnimated:YES completion:nil];
}

/// 拍照事件
- (IBAction)shutter:(UIButton *)sender
{
    sender.userInteractionEnabled = NO;
    AVCaptureConnection * connection = [self.imageOutput connectionWithMediaType:AVMediaTypeVideo];
    connection.videoOrientation = AVCaptureVideoOrientationPortrait;

    connection.videoScaleAndCropFactor = 1.0;   // 获取流比例
    if (!connection) {
        NSLog(@"take photo failed!");
        return;
    }

    [self.imageOutput captureStillImageAsynchronouslyFromConnection:connection completionHandler:^(CMSampleBufferRef imageDataSampleBuffer, NSError *error) {
        if (imageDataSampleBuffer == NULL) {
            return;
        }
        NSData * imageData = [AVCaptureStillImageOutput jpegStillImageNSDataRepresentation:imageDataSampleBuffer];
        UIImage * image = [UIImage imageWithData:imageData];
        SAPhotoViewCtrl *photoView = [[SAPhotoViewCtrl alloc] initWithImage:image];
        [self.navigationController pushViewController:photoView animated:NO];
        sender.userInteractionEnabled = YES;
    }];
}

/// 闪光灯开关按钮
- (IBAction)overTurn:(UIButton *)sender
{
    sender.tag = (sender.tag + 1) % 3;
    NSString *imageName = [NSString stringWithFormat:@"camera_flashlight_%d.png", (int)sender.tag];
    [sender setBackgroundImage:[UIImage imageNamed:imageName] forState:UIControlStateNormal];
    [self setDevice:self.deviceInput.device FlashMode:(2 - sender.tag)];
}

/// 切换闪光灯模式
- (void)setDevice:(AVCaptureDevice *)device FlashMode:(AVCaptureFlashMode)flashModel
{
    if (device.isFlashAvailable == NO) return;
    if ([device lockForConfiguration:nil]) {
        device.flashMode = flashModel;
    }
    [device unlockForConfiguration];
}

@end

3、SAImagePickerController.h

[Objective-C] 纯文本查看 复制代码

//
//  SAImagePickerController.h
//  Test
//
//  Created by 余西安 on 15/4/15.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import <UIKit/UIKit.h>

typedef void (^SAImagePickerComplete)(UIImage *image);

@interface SAImagePickerController : UINavigationController

@property (nonatomic, copy) SAImagePickerComplete completeBlock;

+ (instancetype)pickerComplete:(SAImagePickerComplete)complete;

@end

4、SAImagePickerController.m

[Objective-C] 纯文本查看 复制代码

//
//  SAImagePickerController.m
//  Test
//
//  Created by 余西安 on 15/4/15.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import "SAImagePickerController.h"
#import "SACameraCtrl.h"

@interface SAImagePickerController ()

@end

@implementation SAImagePickerController

+ (instancetype)pickerComplete:(SAImagePickerComplete)complete
{
    return [[self alloc] initWithBlock:complete];
}

- (instancetype)initWithBlock:(SAImagePickerComplete)block
{
    if (self = [super init]){
        if (block) self.completeBlock = block;
    }
    return self;
}

- (instancetype)init
{
    SACameraCtrl *cameraCtrl = [[SACameraCtrl alloc] init];
    if (self = [super initWithRootViewController:cameraCtrl]){

    }
    return self;
}

- (void)viewDidLoad
{
    [super viewDidLoad];
}

- (void)dealloc
{
    SALog(@"SAImagePickerController is dealloc");
}
@end

5、SAPhotoViewCtrl.h

[Objective-C] 纯文本查看 复制代码

//
//  SAPhotoViewCtrl.h
//  Test
//
//  Created by 余西安 on 15/4/14.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface SAPhotoViewCtrl : UIViewController

@property (weak, nonatomic) IBOutlet UIImageView *imageView;

- (instancetype)initWithImage:(UIImage *)image;

@end

6、SAPhotoViewCtrl.m

[Objective-C] 纯文本查看 复制代码

//
//  SAPhotoViewCtrl.m
//  Test
//
//  Created by 余西安 on 15/4/14.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import "SAPhotoViewCtrl.h"
#import "SAImagePickerController.h"

@interface SAPhotoViewCtrl ()

@property (nonatomic, strong) UIImage *image;

@property (nonatomic, assign) NSInteger rotate;

@end

@implementation SAPhotoViewCtrl

- (instancetype)initWithImage:(UIImage *)image
{
    if (self = [super initWithNibName:@"SAPhotoViewCtrl" bundle:nil]){
        self.image = image;
        self.rotate = 0;
    }
    return self;
}

- (void)viewWillAppear:(BOOL)animated
{
    [super viewWillAppear:animated];
    self.imageView.image = self.image;
    [[UIApplication sharedApplication] setStatusBarHidden:YES];
}

- (void)viewWillDisappear:(BOOL)animated
{
    [super viewWillDisappear:animated];
    [[UIApplication sharedApplication] setStatusBarHidden:NO];
}

- (void)viewDidLoad
{
    [super viewDidLoad];
}

/// 旋转图片
- (IBAction)transForm:(UIButton *)sender
{
    self.rotate ++;
    [UIView animateWithDuration:0.3 animations:^{
        self.imageView.transform = CGAffineTransformRotate(self.imageView.transform, - M_PI_2);
    }];
}

/// 重新拍摄
- (IBAction)reShutter:(UIButton *)sender
{
    [self.navigationController popViewControllerAnimated:NO];
}

/// 使用照片
- (IBAction)submitImage:(UIButton *)sender
{
    UIImageOrientation orientation = UIImageOrientationUp;
    switch (self.rotate % 4) {
        case 0:{
            orientation = UIImageOrientationRight;
        }break;
        case 1:{
            orientation = UIImageOrientationUp;
        }break;
        case 2:{
            orientation = UIImageOrientationLeft;
        }break;
        case 3:{
            orientation = UIImageOrientationDown;
        }break;

        default:break;
    }
    CGFloat scale = [UIScreen mainScreen].scale;
    UIImage *image = [[UIImage alloc] initWithCGImage:self.image.CGImage scale:scale orientation:orientation];
    SAImagePickerController *pickerCtrl = (SAImagePickerController *)self.navigationController;
    pickerCtrl.completeBlock(image);
    [self dismissViewControllerAnimated:YES completion:^{
        [self.navigationController popViewControllerAnimated:NO];
    }];
}

@end

7、SAPreview.h

[Objective-C] 纯文本查看 复制代码

//
//  SAPreview.h
//  Test
//
//  Created by 余西安 on 15/4/14.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface SAPreview : UIView

@property (nonatomic, strong) UIImageView   *aperture;

- (void)showAperture;

@end

8、SAPreview.m

[Objective-C] 纯文本查看 复制代码

//
//  SAPreview.m
//  Test
//
//  Created by 余西安 on 15/4/14.
//  Copyright (c) 2015年 Sian. All rights reserved.
//

#import "SAPreview.h"

@implementation SAPreview

- (instancetype)initWithCoder:(NSCoder *)aDecoder
{
    if (self = [super initWithCoder:aDecoder]){
        UIImage *image = [UIImage imageNamed:@"camera_aperture.png"];
        self.aperture = [[UIImageView alloc] initWithImage:image];
    }
    return self;
}

- (void)showAperture
{
    [self addSubview:self.aperture];
    self.aperture.transform = CGAffineTransformMakeScale(2.0, 2.0);
    [UIView animateWithDuration:0.3 animations:^{
        self.aperture.transform = CGAffineTransformIdentity;
    }];
    [self.aperture performSelector:@selector(removeFromSuperview) withObject:nil afterDelay:1.0];
}

@end

五、基本使用

一行代码搞定！

[Objective-C] 纯文本查看 复制代码

    SAImagePickerController *imagePicker = [SAImagePickerController  pickerComplete:^(UIImage *image) {
        self.imageView.image = image;
    }];
    [self presentViewController:imagePicker animated:YES completion:nil];

六、Demo下载

游客，如果您要查看本帖隐藏内容请回复

喵了个咪 · 发表于 2015-4-22 01:57:09

写得非常好

喵了个咪 · 发表于 2015-4-23 14:36:25

请问一下 , 你所使用的字体是什么名字呢 ?

Sian · 发表于 2015-4-24 09:35:10

喵了个咪发表于 2015-4-23 14:36
请问一下 , 你所使用的字体是什么名字呢 ?

按钮字体吗？系统自带默认字体，没有修改。

喵了个咪 · 发表于 2015-4-24 09:45:38

Sian 发表于 2015-4-24 09:35
按钮字体吗？系统自带默认字体，没有修改。

不是按钮字体 , 是代码字体 , 就是帖子里黑色背景下的代码字体 , 请问用的是哪个字体呢 ?

Sian · 发表于 2015-4-24 09:54:14

喵了个咪发表于 2015-4-24 09:45
不是按钮字体 , 是代码字体 , 就是帖子里黑色背景下的代码字体 , 请问用的是哪个字体呢 ?

在功能区插入表情旁边有个插入代码，选择Objective-C语言，系统会自动布局。

喵了个咪 · 发表于 2015-4-24 10:06:04

Sian 发表于 2015-4-24 09:54
在功能区插入表情旁边有个插入代码，选择Objective-C语言，系统会自动布局。

那请问系统用的是哪一种字体呢 ? 我想在Xcode里也用这种字体 , 因为这种字体看着挺舒服的 .

Sian · 发表于 2015-4-24 13:04:16

本帖最后由 Sian 于 2015-4-24 13:15 编辑

喵了个咪发表于 2015-4-24 10:06
那请问系统用的是哪一种字体呢 ? 我想在Xcode里也用这种字体 , 因为这种字体看着挺舒服的 .

Courier New
Consolas

喵了个咪 · 发表于 2015-4-24 13:13:35

Sian 发表于 2015-4-24 13:04
Courier New

非常感谢 !! {:3_48:}

Sian · 发表于 2015-4-24 13:16:04

喵了个咪发表于 2015-4-24 13:13
非常感谢 !!

Consolas

帐号		自动登录	找回密码
密码			立即注册

[SAFoundation] iOS项目实战之自定义相机

相关帖子
